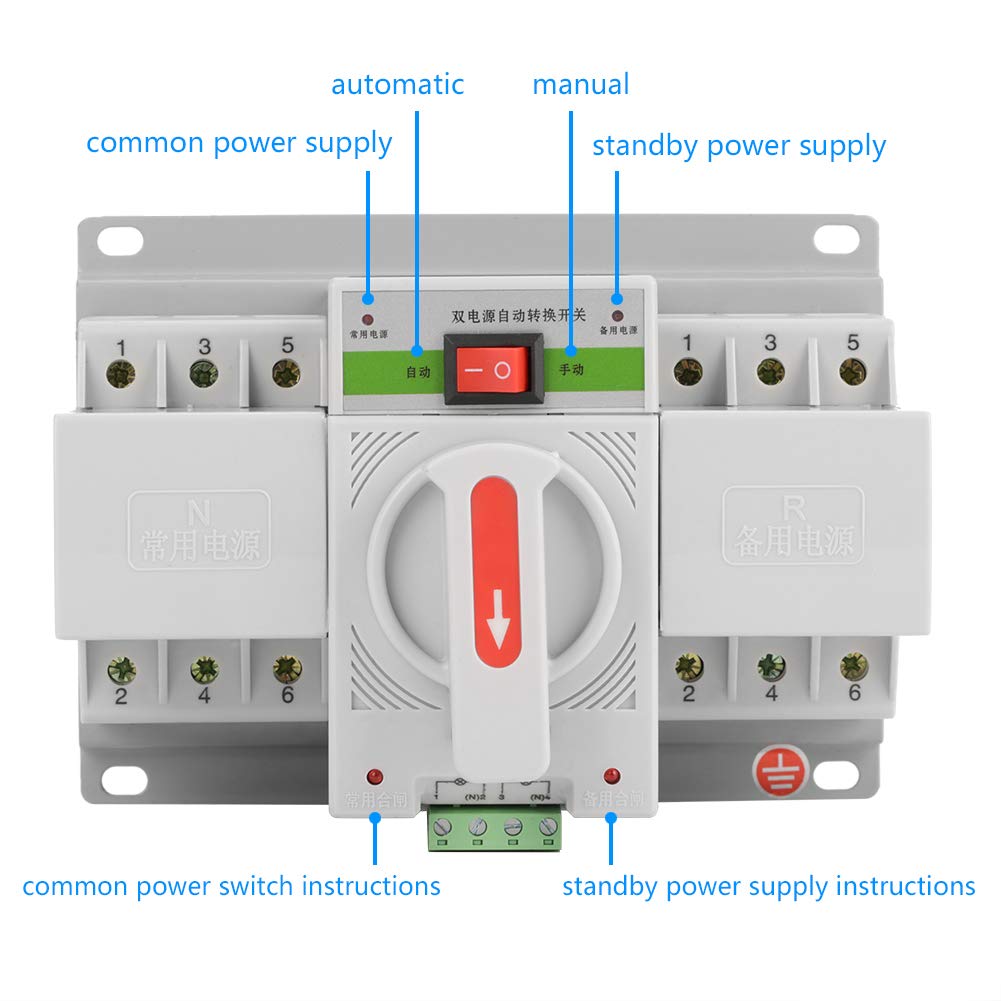

Transfer Switch, 220V 63A 3P Mini Intelligent Transfer Switch, Dual Power Automatic Transfer Switch Circuit Breaker, DC12-24v
4.8 (147 items)
Limited Time SaleUS$29.02 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210093297 | Release Date | 2026/04/02 | List Price | US$19.35 | Model Number | 210093297 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Model: ZGQ1M - 63/3PInput voltage: 220VInsulation voltage: 4000 (V)Rated voltage: 400 (V)EPS external indication: DC12-24V Rated current: 63 (A)Rated impact withstand voltage: 4 (KV)3C rated voltage range: 37V-440VHole: M6Size: 18.5*13.5cm/7.28*5.31inWeight: 1700gPackage included:1 x Automatic Transfer Switch
- Reasonable structure, small size, beautiful appearance, equipped with protective cover, power supply is more safe and reliable
- Complete protection function, short circuit, overload, lack of phase, undervoltage protection
- With EPS fire power supply interface, DC12-24v can reliably long distance double point.
- Noiseless operation,energy saving, easy installation, simple operation and reliable performance.
- Especially suitable for office buildings requiring fire fighting.
| Color | Onecolor |
|---|---|
| Terminal | Screw |
| Brand Name | Axppin |
| Unit Count | 1 Count |
| Switch Type | Rotary |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | Thincol |
| Actuator Type | Rotary |
| Material Type | Copper, Metal, Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw Terminals |
| Control Method | Remote, Touch |
| Current Rating | 63 Amps |
| Operation Mode | Automatic |
| Item Dimensions | 7.87 x 3.94 x 3.94 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 220 Volts |
| Specification Met | 3c |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
