DC 12V 40A Motor Remote Control Switch 2CH Motor Forward and Reverse Wireless Switch, 433Mhz Remote Control Relay Use for Car, Motor, Electric Curtain, Water Pump and More

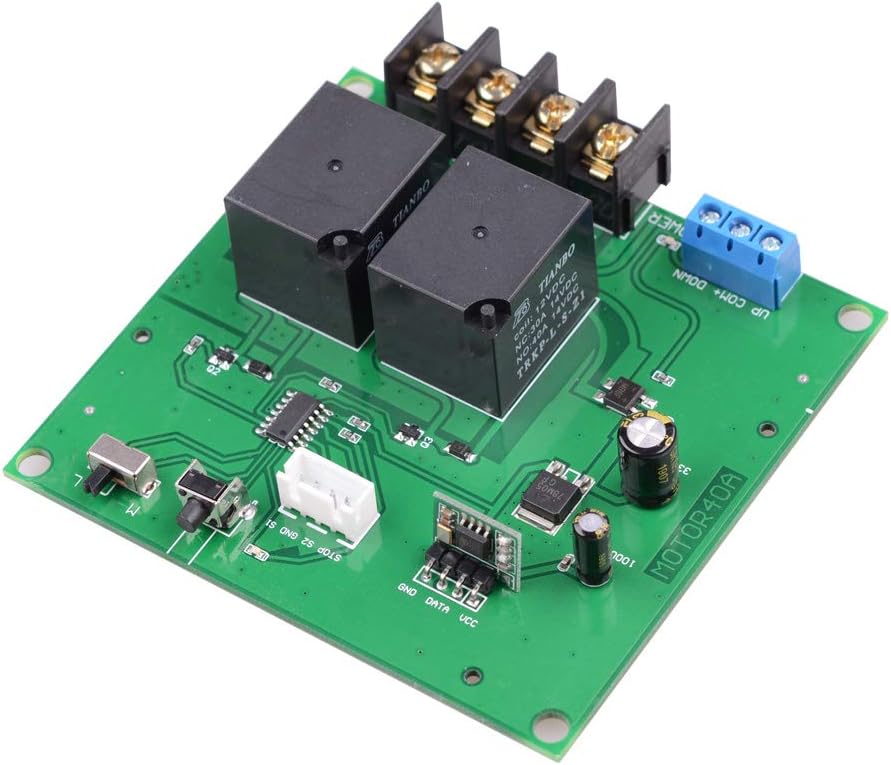

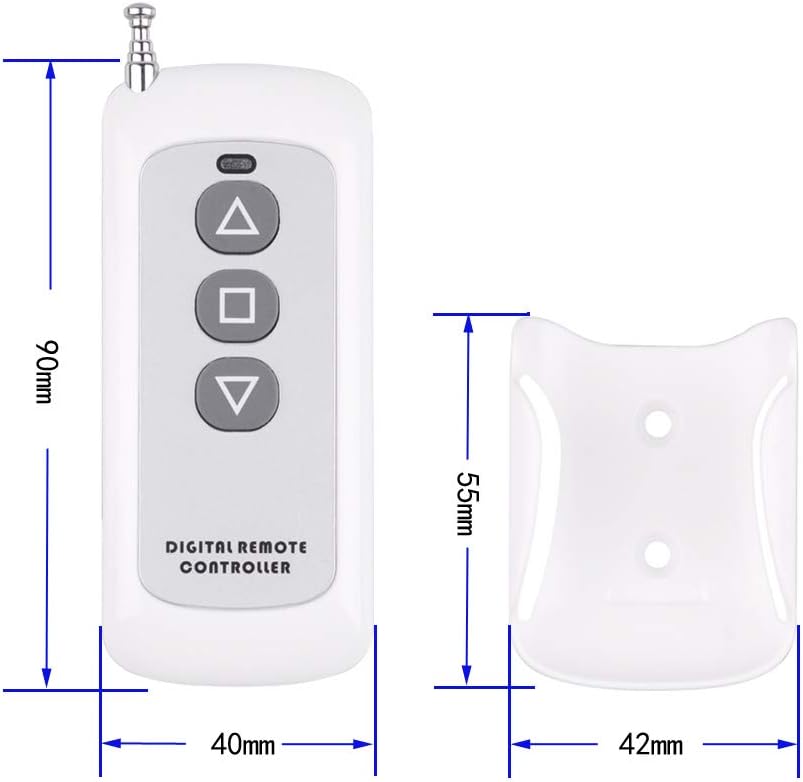

About Receiver:Working Voltage: DC12V Max Load: 40A Relay (have better load less than 300W) Working Mode: Momentary Latched adjusted by DIP Switch Momentary----Switch turn to“M" Latched---Switch turn to " L" Momentary---Press button"Up", the Motor Forward, Release is Stop. Press button "Down", the Motor Reverse, Release is Stop. Latched--- Press button "Up", the Motor Forward, Press button "Stop" is stop. Press button "Down", the Motor Reverse, Press button"Stop" is stopWhen the receiver output state is “Latched”, we have set it 2S time delay for forwards and reverse, it is the Protection function.How to wire to your External Manual Button (if you need)Forward ---S2 & GNDReverse ---S1 & GND Stop---Stop & GNDAbout Limited Switch Function: Limited Switch use UP,DOWN and COM+ Terminal ,Your limited switch connect COM and NC .（Limited Switch is not included ) About Learning Code: 1. Press the learning button on the receiver for 1 time,the learning indicator ON,Then press the transmitter button up for 1 time (first button default for forward) ,the learning indicator flash 2 times and ON,It mean the first button learning Successfully 2. Then press the transmitter button down for 1 time (second button default for reverse) ,the learning indicator flash 2 times and ON,It mean the second button learning Successfully 3. Then press the transmitter button stop for 1 time (third button default for stop) ,the learning indicator flash 2 times and ON,It mean the third button learning Successfully 4. Then press the transmitter button stop for 1 time again,the learning indicator flash 2 times and OFF,It mean all button learning Successfully About Learning Code: Press the learning button on the receiver for 5s,the learning indicator will flash 3 times and OFF , It mean all the transmitter code in the receiver have been cleared.Package Include: 1 x Receiver 1 x Transmitter

• 【 Wide Application】: It is mainly used in 12V include Anti-Theft Alarms, Security Systems Roller Lind Door, Car, Gate Barriers ,Household Appliances,Pump,Lights Ceiling and Electrical Equipment ,Water Pump, Lamp, Security Systems Garage Door，industrial control and security industry and Various types of electrical equipment other fields
• 【SIGNAL 】The RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 650 ft (200meters) with no obstacle.
• 【EASY to USE】This controller is simple to use, just connect the power supply and the DC motor to use, suitable for high-power DC motors. ( Receiver Size: 115*95*40mm ) . We have paired the remote control with the controller, customers only need to install it and use it, no need to do anything else
• 【Oversized load 】The controller adopts 40A relay, 12V controller can load 300W power, including limit function and manual function
• The initial state is power off. If the power is turned on after a sudden power failure, the controller will be in power off state. Intelligent learning and code matching, internally equipped with interlocking and non-locking function switch (need to cut off the power once after changing the mode)
